CE RoHS 12V 848pixel blue Car LED Moving Message sign

Time:2020-09-25 10:40Source:未知Visits:

Quick Details
Place of Origin:
Guangdong, China
Model Number:
MLD-N848R-M
Brand Name:
xuancai
Frame:
ABS firerpoof material
Frame color:
black
Communication:
IR remote control & USB PC software
Brackets angle:
flexiale in 360 degree
Installation:
front window & rear window
Posture:
standing , stick on glass
Fixed:
sucker , double side tapes
Usage:
indoor, indoor
Warranty:
one full year
Life span:
100000 hours
Screen Dimension:
1.6*8.3 inch / 40.6*210.8mm
Tube Chip Color:
RED
Display Function:
text, symboles
Pixels:
4.75mm



 CE RoHS  5V USB /12V DC / ( 12~36V Customization)   PH4.75MM- 8x48pixel   Scrolling remote control  or PC software English and Russian led car

sign/ Display/ Panel/ Board/ Module Windows vehicle advertisement message

Product Description

 MLD-N848-M

PH:4.75mm
Resolution:8X48

Display size: 1.6"(H)×8.3" (L) (40.6*210.8mm)

Frame size: 10"(W) ×3"(H) ×0.8"(D) (254*76.2*20.3mm)

Frame material: ABS fireproof

Power supply: Max 12V 1000mA (DC socket)/ 5V (USB) 1000mA



What about their Functions?

*. European Characters: like Display English, Polish, French, German, Hungarian, Turkish, Spanish, Portuguese, Swedish, Icelandic, Greek etc. and some symbols.

*. Brake signal: all LEDs keep lighting for 3 seconds when brake action is effective, then show ‘STOP’_(Optional to add)

*. 26 messages(A-Z for remote control)/ software with 26 messages(A-Z). Each message with 250 characters.

*. 6 stages of speed ,6 stages of brightness, 11 kinds of moving mode

* Instant polite language for running car:’ HELP’, ‘SOS’, ‘SORRY’,’PLEASE’, ‘THANK’ …...

*. Password protection

*. 12V cigarette lighter or 5V USB power supply (optional)

*. Rotatable brackets support change viewing angle in 360°.

*. Message update: IR remote control or PC (optional)



Where i can use it ?  Application Place:

-vehicles

-shops, supermarket, department stores

-bars, service institution

-business reception

- private use



Are you have other models to this product?    Similar type:



XMS1S-6R-M

Specification:



Pixel:

16(H)*64(L)



Pixel pitch:

P3.25/P2.5mm



colour



Red / bule /green /yellow/white SMD



Active area size:

42(H)*210(L)mm



Frame size:

254(L)*76.2(H)*20(D)mm



Frame material:

ABS fireproof



Power supply:

12V/5V(Mini5 USB) 1000mA



Emitting material:

SMD

XMS1O-6R-M

Specification:





Pixel:

7(H)*35(L) pixel



Pixel pitch:

6mm



colour

Red / bule /green /yellow/white lamp



Active area size:

42(H)*210(L)mm



Frame size:

254(L)*76.2(H)*20(D)mm



Frame material:

ABS fireproof



Power supply:

12V/5V(Mini5 USB) 1000mA

XMS1N-6R-M

Specification:



Pixel:

8(H)*48(L) pixel



colour

Red / bule /green /yellow/white module



Active area size:

42(H)*210(L)mm



Frame size:

254(L)*76.2(H)*20(D)mm



Frame material:

ABS fireproof



Power supply:

12V/5V(Mini5 USB) 1000mA



What about the displaying language supporting?     EUR chars/Russian

If some chars not list here, pls tell us your language, we support customization.

CE RoHS 12V 848pixel blue Car LED Moving Message sign

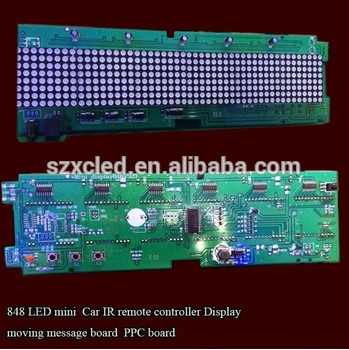

Photo instruction
